1Introduction
This manual describes how to install, configure and use the payment module for Shopware and TWINT.
Before you begin with the installation make sure you have all of the necessary data. You will need:
- TWINT UUID of your shop
- TWINT Certificate Password (created by you)
- TWINT Certificate
- Shopware Payment module from sellxed.com/shop
- Login data to your Server and Shop
Note that you must use at least PHP version 5.6 for our plugins. PHP 8 or higher is currently not supported.
1.1Installation Process
This document contains all information necessary to install the module. Strictly follow the steps on the check list when setting up the module. This is the only way to ensure a safe usage in compliance with all security regulations.
- Before beginning with the installation you will need to register in the TWINT dealer portal
- Configuration of the Main Module
- Configuration of the accepted payment methods and the respective authorization methods
- Conducting a test order
Our payment plugins should have per default the correct settings for most of our customers' preferences. That means once you have entered the required credentials in the plugin configuration to connect your account to your website, the plugin should be fully operational. Should you be willing to receive detailed information on a setting you do not know, you may contact our support team who will be able to assist you further.
Our support team is at your disposal during regular business hours at: http://www.sellxed.com/support. Furthermore, you have the option of ordering our installation service. We will make sure the plugin is installed correctly in your shop: http://www.sellxed.com/shop/de/integration-und-installation.html
1.2System Requirements
In general, the plugin has the same system requirements as Shopware. Below you can find the most important requirements of the plugin:- PHP Version: 5.4.x or higher
- OpenSSL: Current version with support for TLS 1.2 or higher.
- fsockopen: The PHP function fsockopen must be enabled. The plugin must be able to connect to external systems over the Internet.
- PHP Functions: All common PHP functions must be enabled.
2Configuration of the TWINT - Dealer Portal
2.1Certificate and UUID of your Store Download
You will receive the necessary access data directly in the dealer portal of TWINT. Log in to the corresponding location in the TWINT Dealer Portal.
- First you need to register in the dealer portal
- Set up an online shop configuration. In case you would like to order an installation service, transmit the certificate as well as the certificate password which you will have created in the process of setting up your store, to customweb.
2.1.1Entering the SystemID
You will receive the TWINT UUID in the initial email from TWINT. It is important that you save the UUID as we need it to set up your account. Copy the TWINT UUID and paste it into the corresponding location in the Main Module.
2.1.2Converting the Certificates
The certificate will be retrieved and ordered automatically during the process of creating your store in the dealer portal of TWINT. If you have forgotten your certificate password or are having problems with generating the certificate please contact TWINT directly.
You will need to convert the certificate into a .pem file first. To do so you can use a service (but we strongly advise against it as you should not pass along your certification password to anyone except customweb).
You may want to use openssl to convert the certificates. Openssl is preinstalled on most unix based systems. On Windows it can be installed. The conversion can be done as following openssl pkcs12 -in certificate.pfx -out certificate.pem.
As soon as you are in possession of the .pem certificate, copy the complete content of the .pem file (certificate incl. -----BEGIN CERTIFICATE----- and -----END RSA PRIVATE KEY-----) into the text field.
Make sure you don't forget to also fill in the password into the main module.
If you have ordered the integration service you will need to transmit the certificate which you created above to customweb.
2.1.3Time Out Settings
Technically, TWINT does not send payment notifications to your shop. The server pulls the result of the transaction periodically. In order for this to work you need to have set the Server Polling Time Out. However the standard values shouldn't be altered. Make sure that you have set up the Cron Job in your module. You will find more information in the manual further down.
2.2Configuration of the Payment Methods
The payment method TWINT will also be delivered in the module. You will find it in the configuration of the payment methods in your shop. Activate this payment method in order for it to be available for your customers in your shop.
Further information regarding the configuration of the payment methods and the implementation of the different settings can be found here.
3Module Installation and Update in the Shopware Shop
3.1Installation
At this time you should already be in possession of the module. Should this not be the case, you can download the necessary files in your customer account in the sellxed shop (Menu "My Downloads Downloads"). In order to install the module in your shop, please carry out the following steps:
- Download the plugin. The download can be found in your sellxed.com account under "My Downloads".
- Unzip the archive you have just downloaded.
- In the unzipped folder navigate to the folder "files"
- For some shops there are different versions of the plugin provided. If this is the case open the folder which corresponds to your shop version.
- Using your preferred FTP client upload entire content of this folder into the root directory of your shop. For some shops there is a specific folder containing the plugins. If that is the case upload the plugin into this folder. Make sure that the folders aren't replaced but merely merged.
- If you haven't yet done so, log back into your shop.
3.2Updates and Upgrades
You have direct and unlimited access to updates and upgrades during the duration of your support contract. In order to receive constant information about available updates we ask you to subscribe to our RSS feed that we publish for your module.
More information regarding the subscription of this RSS feed can be found under: http://www.sellxed.com/en/updates_upgrades.
We only recommend an update if something doesn't work in your shop, if you want to use new feature or if there is a necessary security update.
3.2.1Update Checklist
We ask you to strictly comply with the checklist below when doing an update:
- Always do a backup for your database and your files in your shop
- Use always a test system to test the update process.
- Wait until all the files are copied to the shop, clear the cache if there is one in your shop and then visit the configuration page of the main module so that the update process will be initialized.
Please test the update procedure first in your test shop. Our support team is able and willing to help you if you experience problems with the update process. However, if you decide to perform the update directly in your live shop there is the possibility of a downtime of the shop of more than two days depending on the availability of our support if you do not want to book our complementary support.
Depending on the version it could be that the database has to be migrated. We recommend you therefore, to perform the updates in times when the shop is not visited too frequently by your customers.
3.2.2Update Instructions
Please always read the update instruction. Those instructions can be found in the changelog. If there are no special remarks, you can proceed by just overwriting the files in your system.
3.2.3Updated Plugin from the TwintCw to the CwbTwintCw Version.
We plan to release this plugin in the shopware store in the near future. To make this possible we hda to apply some changes to our code. Most important a prefix for our PHP classes is required and the plugin folder had to be renamed. To update to this new version simply overwriting the existing files is not possible. This sections describes the steps required to update the module in detail.
Please test the update procedure first in your development system. So you can ensure the update is working correctly.
If you are using multiple plugins from us. You need to update all of them to the new version.
- Activate the maintenance mode of the shop.
- Make a backup for your database and your files in your shop. Without this you will not be able to revert to the old version, if anything goes wrong.
- Upload the new plugin files.
- Deactivate the existing plugin. Do not deinstall the old plugin yet.
- Install and activate the new plugin.
- If you have custom css or template files for the plugin, adapt the changes to the new plugin.
- If you are using the Shopware API endpoint of this plugin, update the URL to new endpoint.
- Verify the main and method settings.
- Deinstall the old plugin.
- Delete the files of the old plugin. The following files/folders must be removed, if they exist:
- engine/Shopware/Plugins/Local/Frontend/TwintCw
- engine/Library/Customweb
- engine/Library/Crypt
- engine/Library/File
- engine/Library/Math
- engine/Library/Mobile
- engine/Library/Net
- engine/Library/PhoneNumber
- engine/Library/System
- engine/Library/loader.php
- engine/Library/openssl.cnf
- Make a test transaction to verify everything is workin correctly.
- Deactive the maintenance mode of the shop.
4Module Configuration in the Shopware Shop
The configuration consists of two steps. The first step is the configuration of the main module with all the basic settings (cf. Configuration of the Main Module). During the second step you can then carry out individual configurations for each payment method . This allows for full flexibility and perfect adaptation to your processes.
Please create a backup of the main directory of your shop. In case of problems you will then always be able to return your shop to its original state.
We furthermore recommend testing the integration on a test system. Complications may arise with third party modules installed by you. In case of questions, our support is gladly at your disposal.
4.1Configuration of the Main Module
In order to install the main module search for TWINT under Settings > Plugin Manager . Click on the + symbol in order to begin the installation process. Afterwards, click the "edit" symbol and configure the main module.
Enter the individual options which you partly may have already used for the configuration of the administration interface of TWINT. Should an option not be clear to you, you can click on the question mark and will find further information on the settings.
4.2Configuration of the Payment Method

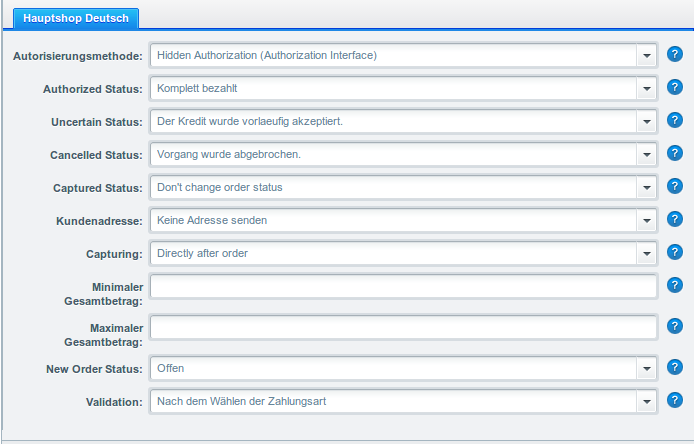

After having configured the main module, you will find all payment methods under Settings > Payment Methods. Activate each payment method you wish to offer in your shop. You can save individual settings for each payment method (and for each shop in case of a multi-shop set-up) and thereby optimally adapt the payment methods to your existing processes. The most central options are described in more detail further below.
4.3Assigning the Payment Method to the Shipping Costs

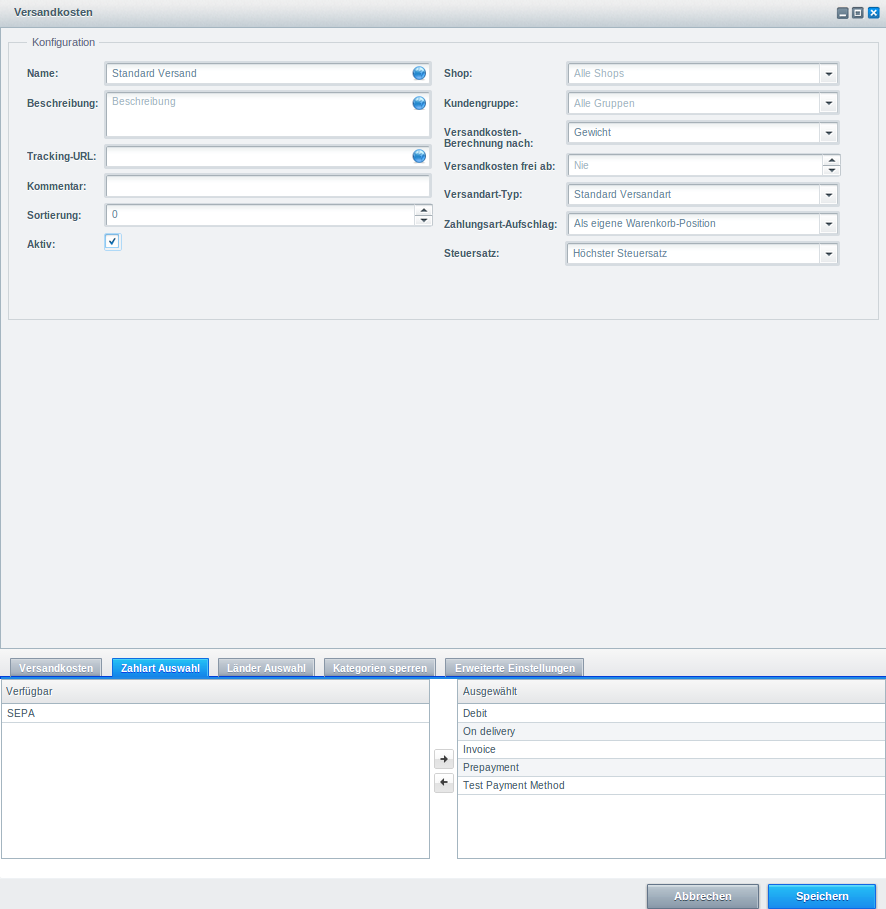

In order for the transactions and the shipping costs to be matched correctly to the payment methods you need to assign the payment methods to the shipping methods. Go to settings > shipping costs. Open all the shipping costs and add a payment method.
Depending on the amount of delivered payment methods, it may be that certain payment methods can't be attributed to a specific shipping method as not all payment methods can be displayed. This is a known bug of Shopware. Merely the first 30 payment methods are displayed. Please delete all payment methods that you don't need and then all other payments will be displayed.
4.4Direct Capturing of Transactions
The option "Capture" allows you to specify if you wish to debit payments directly or if you first wish to authorise them and then debit the payment at a later point.
Depending on your acquiring contract, a reservation is only guaranteed for a specific period of time. Should you fail to debit the payment within that period, the authorisation may therefore no longer be guaranteed. Further information on this process can be found below.
It may be that settings saved in the payment modules overwrite settings saved in TWINT.
4.5Uncertain Status
You can specifically label orders for which the money is not guaranteed to be received. This allows you to manually control the order before shipment.
4.5.1Setting the order state
For each payment method you may select in which state the order should be set to depending on the booking state. This is the initial state of the order.
4.6Optional: Validation
Note: It can be that this option is not visible in your module. In this case just ignore this section.
With the option 'Validation' you can define the moment when the payment method should be made visible to the customer during the checkout process. This setting is relevant for modules where the usage depends on the customer's compliance with specific preconditions. For example, if a solvency check has to be carried out or if the payment method is only available in certain countries. In order for the credit check or address validation to also work with European characters, the charset of the "Blowfish mode" must be set to "UTF-8" for certain PSP settings.
You have the choice between these options:
- Validation before the selection of the payment method: A validation verification is carried out before the customer selects the payment method. If the customer does not fulfill the requirements, the payment method is not displayed
- Validation after selection of the payment method: The verification of the compliance occurs after the selection of the payment method and before the confirmation of the order
- During the authorisation: The validation verification is carried out by TWINT during the authorisation process. The payment method is displayed in any case
4.6.1Usage of the Integrated Multishop Functionality of Shopware
The payment module supports the multishop feature of Shopware. No further modifications are necessary. The module automatically recognizes the shop the order belongs to. In order for the multishop functionality to work, it is, however, necessary that the individual sub-shops within Shopware have been configured correctly.
5Settings / Configuration of Payment Methods
5.1General Information About the Payment Methods
The plugin contains the most common payment methods. In case a desired payment method is not included per default, please contact us directly.
In order to be able to use a payment method, it must be activated in your account with TWINT as well as in your shop. Information about the configuration of the payment methods can be found further above.
Below you can find important information for specific payment methods that deviate from the standard process.
5.2Information on Payment Status
For each payment method you can define an initial payment status (status for authorized payments etc.). You hereby define the payment status for each state depending on the processing type of the order (captured, authorized, etc.). It's the initial status which the order assumes. Depending on the mutation carried out by you, the status can change.
Never set the status to Pending TWINT or any similar pending status which is implemented by the module.
5.2.1Order status "pending" / imminent payment (or similar)
Orders with the status 'pending TWINT' are pending orders. Orders are set to that status if a customer is redirected in order to pay but hasn't returned successfully or the feedback hasn't reached your shop yet (Customer closed window on the payment page and didn't complete payment). Depending on the payment method these orders will automatically be transformed into cancelled orders and the inventory will be cleared (so long as the Cronjob is activated). How long this takes depends on the characteristics of the payment method and cannot be configured.
If you have a lot of pending orders it usually means that the notifications from your webserver to TWINT are being blocked. In this case check the settings of your firewall and ask the Hoster to activate the IPs and User Agents of TWINT.
5.2.2Order status "cancelled"
Orders with the status "cancelled" have either been set to that status automatically due to a timeout, as described above, or have been cancelled directly by the customer.
6The Module in Action
Below you will find an overview of the most important features in the daily usage of the TWINT module.
6.1Refunds

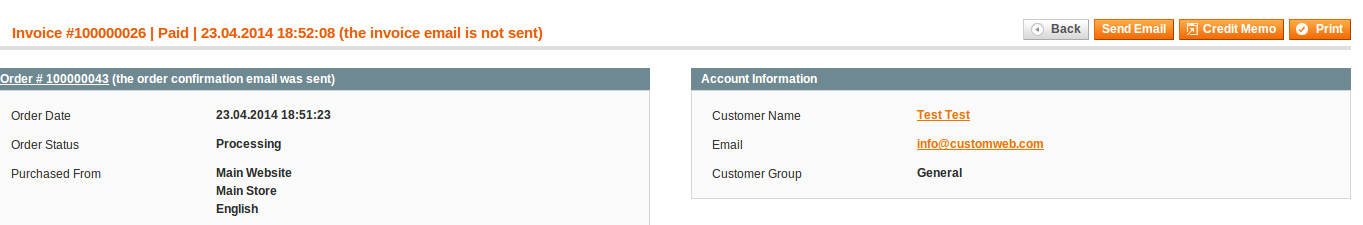

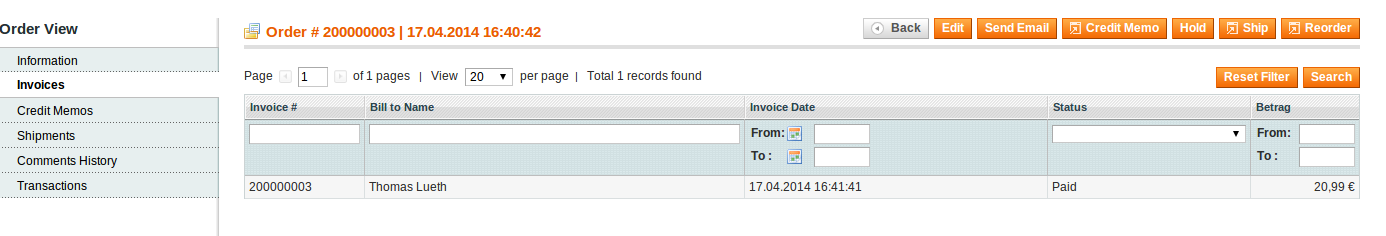

You can create refunds for charged transactions and transmit them to TWINT automatically. In order to do this, open the invoice for a captured order. By clicking on "Credit Memo", a new dialogue for refunds opens. Adjust the amount you would like to refund and click "Refund" to submit it to TWINT.

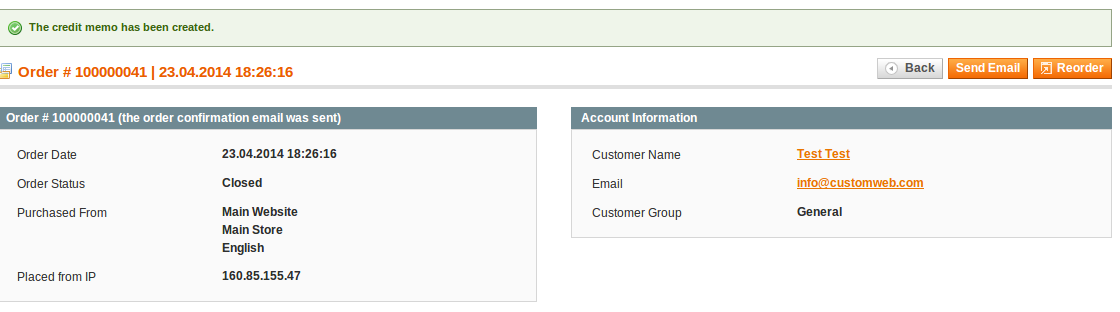

The process demonstrated by screenshots:
6.1.1Refund Based on Quantity

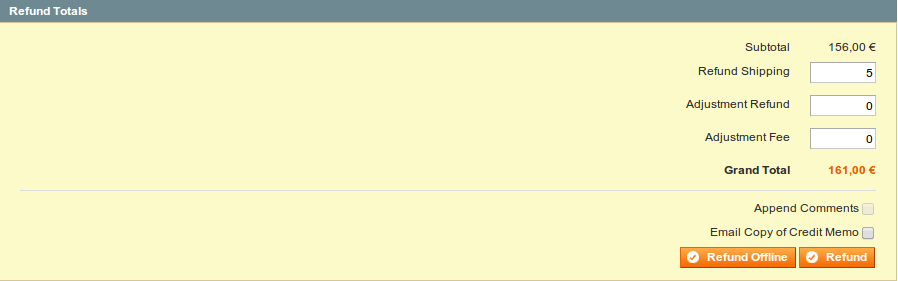

You can create refunds based on the product quantity by adjusting the number of products you wish to refund in the credit memo dialogue.
You can create refunds until the complete original amount has been credited. The order status switches to complete automatically.
6.1.2Refunding Customized Amounts
Magento also allows you to define any amount to refund. In order to do this, follow these steps:
- Open the Credit Memo Dialogue as described above
- Set the number of products you wish to refund to 0
- Enter any amount in the field Adjustment Refund
6.1.3Deducting a Processing Fee for Refunds
You can charge a processing fee for the refunds by following these steps:
- Open the Credit Memo Dialogue as described above
- In the field Adjustment Fee, define any amount as a processing fee.

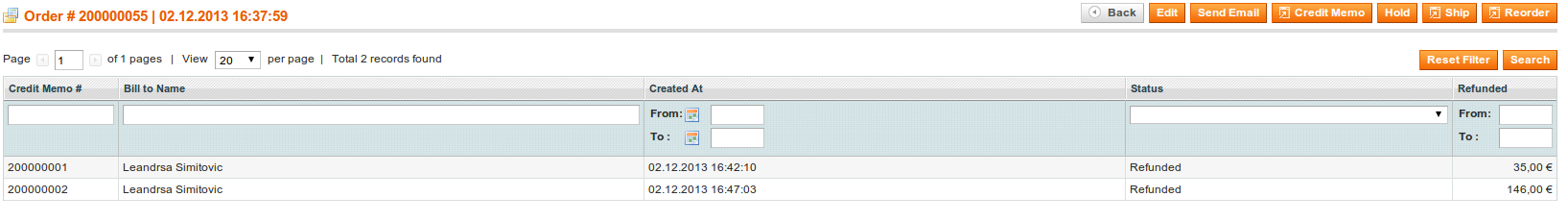

It is possible to conduct several refunds for one order. Please note, that the maximum amount for the total of refunds is 100% of the original amount. If you already conducted a refund you need to make sure not to refund more than the original amount by adjusting the quantity and the adjustment fee.
6.2Capturing / Canceling of Orders
6.2.1Capturing Orders
The transaction management between your shop and TWINT is not synchronized. If you capture payments with TWINT, the status in the shop will not be updated and a second capturing in the shop is not possible.
In order to be able to capture orders, you must make sure that you have set 'Capturing' to deferred in the configuration of the payment method.

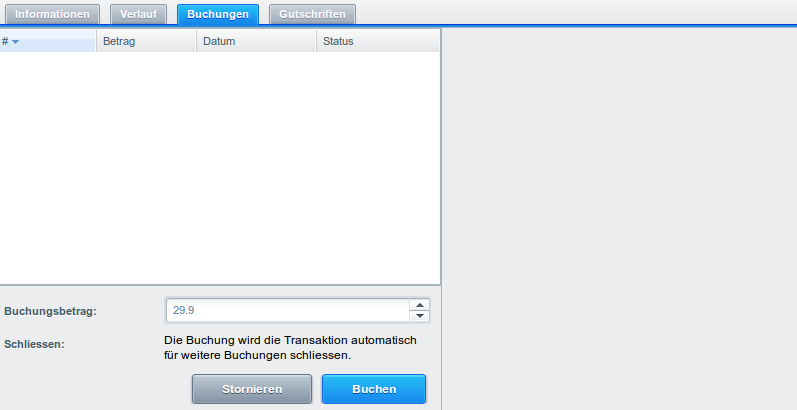

Open the order you wish to capture and switch to the tab Transactions. Here you will find the tab Captures. Enter the amount you wish to debit from the customer's card. By clicking Capture, a direct capturing of the order occurs with TWINT.
6.2.2Cancellation
By clicking the button Cancel, you delete the initial authorization on the customer's card. The pre-authorized amount is released from the customer's card.
6.3Useful Transaction Information on the Order
In each order, processed via our module, you can find an overview of the most important information about the transaction as well as a transaction history.
In order to get to the transaction information, open the order and switch to the tab Transactions. Here you will find all authorization attempts and the related information.
6.4Refunds
You can refund already captured transactions and automatically transmit them to TWINT. In order to to so, open the order. Switch to the tab Transactions. A new window will open up in which you must then switch to the tab Refunds in order to refund orders.
To refund a line item you need to enter the quantity you wish to refund. By clicking Refund, the refund is automatically transmitted to TWINT. It will than be refunded via the payment method the customer chose for the transaction.
Please note that you can't refund more than 100% of the original amount.
Executing a refund will not change the status of the order.
7Getting the Credit Card Data via Shopware REST API
When connecting ERP systems to Shopware it may be that further information is required via Shopware API. Our module provides you with a lot of payment information also via Shopware REST API.
Basic Information about the usage of the REST API of Shopware can be found in the Shopware Developers Guide.
The service can be called up under https://www.shop-url.com/api/CwbtwintcwTransactions. The call of the above URL leads to the listing of all transactions. By adding the Transaction ID you can filter by the corresponding Transaction ID. The Transaction ID can be found in the order overview (Customer > Payments > TWINT )
Additionally, you can also access the transaction via the Payment ID (transmitted through TWINT). To do so, the parameter 'usePaymentId=1' has to be added as a parameter to the URL.
8Set-up a cron job to activate the timed operations
To activate the timed operations of the plugin (e.g. update service, deleting pending orders, etc.) make sure that you set up the Shopware Cron engine. Especially the update function allows you to automatically retrieve additional information or changes of your order directly via the API of TWINT. For payment methods which use a delayed authorisation process this is mandatory. Please note it could be that in order to use the update feature it may be necessary that TWINT activates additional options in your account.
The module uses the standard cron engine of Shopware. More information regarding the set up can be found here: https://community.shopware.com/Cronjobs_detail_1102.html.
9Testing
Before switching from test to live mode it is important that you test the module extensively.
Do not forget to switch the operating mode from test to live after having successfully tested the module.
9.1Test Data
In the following section you can find the test data for the various payment methods:9.2Testing with TWINT
Make sure you are in the Live Mode and carry out a test transaction with your smart phone. For the tests we recommend you set the booking in the configuration of the payment method to 'delayed' so that the money won't be debited directly. Testing in test mode is only possible if you have the special Twint developer app. This needs to be setup for you by Twint directly. If you are interested in this please contact Twint.
10Errors and their Solutions
You can find detailed information under http://www.sellxed.com/en/faq. Should you not be able to solve your problem with the provided information, please contact us directly under: http://www.sellxed.com/en/support
10.1The Referrer URL appears in my Analytics Tool
When a customer and the notification are redirected via Header Redirection, the TWINT Referrer URL might appear in your Analytics Tool thus hiding the original traffic source. However, most Analytic Tools are able to minimize this problem.
In case you are using Google Analytics as reporting tool, this step by step guide may help you to exclude the URLs: under bullet point 4.
11Compatibility with Third-Party Plugins
The plugins listed below are compatible with our payment modules and allow you to handle certain tasks in an easier way.
11.1Birthday and gender in Shopware
For certain payment service providers it is necessary to check the birthday and the gender of a customer. Shopware does not check this by default. To enable these checks go to "Configuration > Basic Settings > Frontend > Login / Registration" and check the following parameters:
- Show Birthday Field
- Birthday is required
- Show "I am" select field
12Error Logging
The module will log different unexpected errors or information depending on the configured level. If there is any issue with the module, this log can help identify the cause.
12.1Log Levels
You can configure the log level in the TWINT settings.
- Error: Logs unexpected errors only. (Default)
- Info: Logs extended information.
- Debug: Logs information helpful for debugging.
12.2Log Location
The log file is stored in the Shopware log directory. Please make sure the path exists and it is writable by the webserver. (Default Path: {shopRootDirectory}/logs or {shopRootDirectory}/var/log)
13Advanced Information
This section of the manual is for advanced usage of the module. The content is for advanced users with special requirements. Everything in this section is optional and not required for the daily usage of the module.
13.1Transaction Object
This section describes how to extract information from a transaction, if you need it for further processing. E.g. you require more information of the transaction for further processing an order in your ERP system.
The code snippets in this section assume your script resides in the root folder of the shop with the default shop folder structure.
require __DIR__ . '/autoload.php'; use Shopware\Kernel; $environment = 'production'; $kernel = new Kernel($environment, false); $kernel->boot();
$pluginPath = 'engine/Shopware/Plugins/Local/Frontend/CwbTwintCw'; Shopware()->Loader()->registerNamespace('Customweb', 'Customweb/'); Shopware()->Loader()->registerNamespace('CwbTwintCw_Helpers', $pluginPath . '/Helpers/'); Shopware()->Loader()->registerNamespace('CwbTwintCw_Entities', $pluginPath . '/Entities/'); Shopware()->Loader()->registerNamespace('CwbTwintCw_Components', $pluginPath . '/Components/'); Shopware()->Loader()->registerNamespace('Shopware\Components\Api', $pluginPath . '/Components/Api/'); require_once $pluginPath . '/Library/loader.php'; Customweb_Core_Util_Class::registerClassLoader(function ($className){ return Shopware()->Loader()->loadClass($className); });
Customweb_Core_Util_Class::registerClassLoader(function($className){ if(strpos($className, 'TwintCw') === 0){ $fileName = substr($className, strrpos($className, '_')+1).".php"; if(file_exists('engine/Shopware/Plugins/Local/Frontend/CwbTwintCw/Legacy/'.$fileName)){ require_once 'engine/Shopware/Plugins/Local/Frontend/CwbTwintCw/Legacy/'.$fileName; return true; } } return false; });
$transactionById = CwbTwintCw_Helpers_Util::loadTransaction($transactionId); $transactionObject = $transactionById->getTransactionObject();
