1Introduction

This manual explains the installation, configuration and usage of the payment module for Magento and PayUnity.

Before beginning with the installation, please make sure that you are in possession of all necessary data:

  • User name and password for the login to the backend of PayUnity
  • Magento payment module by sellxed.com/shop
  • Access data to your server and shop

In case you don't yet have a contract with PayUnity, you can acquire it directly through us.

1.1Installation Procedure

In this document you will find all important information for the installation of the module. It is important that you strictly follow the checklist. Only by doing so a secure usage in correspondence with all security regulations can be guaranteed.

  1. Configuration of the test environment by means of the integration data from PayUnity. These can be found on the test platform under https://test.payunity.com/bip/login.prc
  2. Configuration of the basic settings of the payment module
  3. Configuration of the payment methods
  4. Carrying out of a test purchase by means of the attached test data at the end of this document
  5. If the test was successful, you can configure the live data in your shop. Log into the live environment with the obtained access data under: https://payunity.com/bip/login.prc
Installation Service

Our payment plugins should have per default the correct settings for most of our customers' preferences. That means once you have entered the required credentials in the plugin configuration to connect your account to your website, the plugin should be fully operational. Should you be willing to receive detailed informations on a setting you do not know, you may contact our support team who will be able to assist you further.

Our support team is at your disposal during regular business hours at: http://www.sellxed.com/support. Furthermore, you have the option of ordering our installation service. We will make sure the plugin is installed correctly in your shop: http://www.sellxed.com/shop/de/integration-und-installation.html

.htaccess Directory Protection

In order to test the module, any kind of directory protection or IP blocking on your server must be deactivated. This is crucial as otherwise the payment feedback of PayUnity might not get through to the shop.

1.2System Requirements

In general, the plugin has the same system requirements as Magento. Below you can find the most important requirements of the plugin:
  • PHP Version: 5.4.x or higher
  • Magento: 1.7.x or higher
  • OpenSSL: Current version with support for TLS 1.2 or higher.
  • fsockopen: The PHP function fsockopen must be enabled. The plugin must be able to connect to external systems over the Internet.
  • PHP Functions: All common PHP functions must be enabled.

2Configuration

2.1Basic configuration of the main module

The access data for the test environment (https://test.payunity.com/bip/login.prc) is provided to you by PayUnity.

Navigate to the main module in your Shop and fill in the following access data:

  • Authorization Bearer Token (Access Token)
  • Entity ID (CHANNEL ID )
  • The User ID and Password are depreacted and not required anymore, use the new Authorization Bearer Token instead.
  • You no longer need the parameter Security Sender and Security and Hash Secret for the integration. You can simply ignore this entry.
  • The boxes for "Security Hash" and "Security Hash Secret" can be left empty unless your Payment Service Provider instructs you to do otherwise

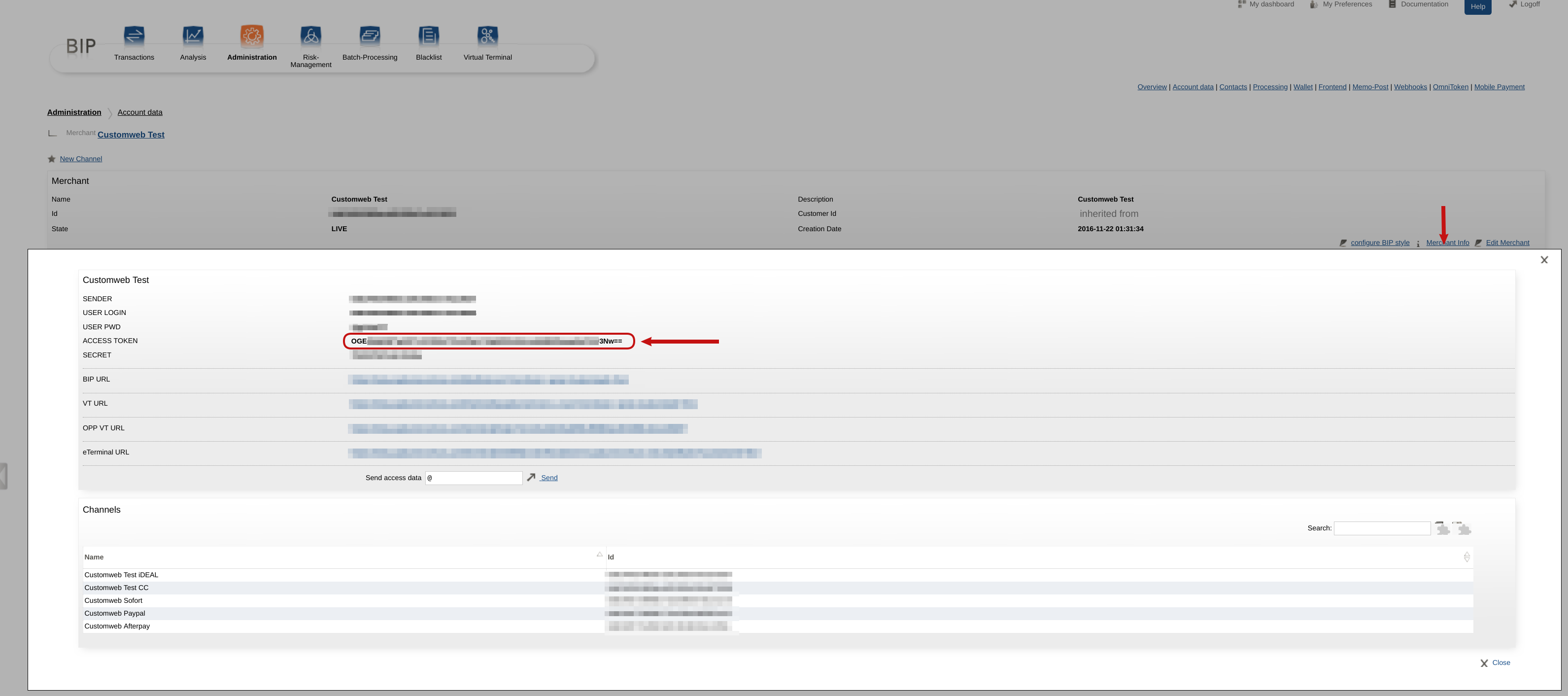

Figure 2.1: The Authorization Bearer Token in the PayUnity backend.

You also have more entry options. For example the Custom Parameters. In principle you leave these blank unlessPayUnity requires you to do otherwise.

2.2Configuration of the Payment Methods

In order to activate the payment methods and to change other payment specific settings, navigate to the settings. (A description as to where to find these settings is listed here hier)

In the configuration of the payment methods you can define which Entity ID (Channel ID) should be used for which amount. This allows you to use a non-3D Secure Channel in case of small figures. In order for you to be able to set up and get the corresponding contract please contactPayUnity.

Figure 2.1: Configuration of the payment method using the example Magento (icon image, can differ from your version of the image).
PCI: New Authorization Method Widget

Please note that the use of the Hidden Mode comes with additional certification requirements (compare with our blog entry regarding this subject). For this reason we will no longer supply our new versions with the hidden mode. If you still use the hidden mode in you payment methods please solely use Widget. The support of the hidden mode will be terminated shortly.

2.3Configuration Webhook

In some special cases it may happen that the payment notification sent by PayUnity can not be proceed by your Magento shop. We recommend to configure a so called webhook in the PayUnity backen under Administration > Webbhook. Please make sure that you configure the correct URL which you can find in your Magento shop under System > PayUnity for Magento 1 and under Stores > PayUnity for Magento 2 > Setup.

2.3.1Configuration Webhook by Merchant

If you have to configure the the webhook on your own, you can find the webhook URL in your Magento shop at System > PayUnity for Magento 1 and under Stores > PayUnity for Magento 2 > Setup . Make sure you configure it in the PayUnity Backend under Administration> Webbhook. Furthermore you have to define a so called "secret for encryption" key. Make sure that you also save the same values in the corresponding fields, as on the Picture below.

Customweb "secret for encryption" Generator

Please note that only ASCII characters may be used for the generation of this key pass phrases. Please use our "secret for encryption" generator so that you do not enter invalid characters.

Figure 2.1: PayUnity Webhook configuration in the backend under Administration > Webbhook.

2.3.2Configuration Webhook by PayUnity

In some PayUnity accounts you can not configure the webhook by yourself. Therefor you have to provide the webhook URL to PayUnity once they setup it for you, they will provide you a specific "secret for encryption" key, which you have to configure in the main module configuration of the module in your shop.

2.4Activation and Testing

When you have activated and configured the payment methods you can run a test with help from the manual Test data.

If the tests were successful you now switch the operation mode from test mode to "Live Mode" and replace the safety features above with your personal access data for the live platform. You will receive this data directly from your Payment Service Provider. Normally the USER ID etc. should be identical for the Live Mode.

3Module Installation and Update in the Magento Shop

3.1Installation

At this time you should already be in possession of the module. Should this not be the case, you can download the necessary files in your customer account in the sellxed shop (Menu "My Downloads Downloads"). In order to install the module in your shop, please carry out the following steps:

  1. Download the plugin. The download can be found in your sellxed.com account under "My Downloads".
  2. Unzip the archive you have just downloaded.
  3. In the unzipped folder navigate to the folder "files"
  4. For some shops there are different versions of the plugin provided. If this is the case open the folder which corresponds to your shop version.
  5. Using your preferred FTP client upload entire content of this folder into the root directory of your shop. For some shops there is a specific folder containing the plugins. If thats the case upload the plugin into this folder. Make sure that the folders aren't replaced but merely merged.
  6. If you haven't yet done so, log back into your shop.

In the following you will find the installation manual for Magento 1 as well as Magento 2

3.1.1Magento 1

Compiler Cache / Caching

Before you start the installation or after doing an update of the module, please make sure, that the compiler cache is disabled. Also make sure that you cleared the cache otherwise it could be that the settings page is not visible.

  1. Create a back-up of your shop.
  2. Extract the content of the ZIP file.
  3. Copy the entire content of the folder "files" into the main directory of the server of your shop respectively to the folder where the plugins are copied normally. In order to do so, use your usual ftp program. Make sure that the folders aren't replaced but merely merged.

3.1.2Magento 2

Im Folgenden werden die Schritte für die Installation und das Update der Extensions erklärt.

3.1.2.1Installations Requirements

Bitte beachten Sie, folgende Voraussetzungen sind für den Betrieb von Magento 2 zwingend zu erfüllen:

  1. System requirements von Magento (http://devdocs.magento.com/guides/v2.0/install-gde/system-requirements.html)
  2. Der Cron Job muss korrekt eingerichtet sein, sonst können keine Extensions installiert werden. Weitere informationen fidnen Sie hier: http://devdocs.magento.com/guides/v2.0/config-guide/cli/config-cli-subcommands-cron.html

3.1.2.2Installation

For the installation of the plugin in your Magento 2 store please follow these steps:

  1. Readiness Check

    Before uploading the plugin it is necessary to do the Readiness Check for Magento 2

    1. 1. Save this script as cw-setup.php on your copmuter.
    2. 2. Upload this cw-setup.php Script into the root directory of your Magnto 2 installation.
    3. 3. Access your server via SSH and run this command: php cw-setup.php
    4. 4. The script will present you with additional commands which you need to execute.

    About the cw-setup.php script

    The provided script generates a set of commands which should be executed to clean up Magento 2. The script itself doesn't execute anything. It only generates the necessary commands.

  2. Upload

    Upload the content of the folder files_2 into the root directory of your server. Execute the commands provided by the cw-setup.php script again.

3.2Updates and Upgrades

You have direct and unlimited access to updates and upgrades during the duration of your support contract. In order to receive constant information about available updates we ask you to subscribe to our RSS feed that we publish for your module.

More information regarding the subscription of this RSS feed can be found under: http://www.sellxed.com/en/updates_upgrades.

We only recommend an update if something doesn't work in your shop, if you want to use new feature or if there is a necessary security update.

3.2.1Update Checklist

We ask you to strictly comply with the checklist below when doing an update:

  1. Always do a backup for your database and your files in your shop
  2. Use always a test system to test the update process.
  3. Wait until all the files are copied to the shop, clear the cache if there is one in your shop and then visit the configuration page of the main module so that the update process will be initialized.
Do not do updates directly in the live environment

Please test the update procedure first in your test shop. Our support team is able and willing to help you if you experience problems with the update process. However, if you decide to perform the update directly in your live shop there is the possibility of a downtime of the shop of more than two days depending on the availability of our support if you do not want to book our complementary support.

Depending on the version it could be that the database has to be migrated. We recommend you therefore, to perform the updates in times when the shop is not visited too frequently by your customers.

3.2.2Update Instructions

Please always read the update instruction. Those instructions can be found in the changelog. If there are no special remarks, you can proceed by just overwriting the files in your system.

3.2.2.1Magento 1

  1. Download the newest version of the plugin. The download is available in your sellxed.com account under "My Downloads".
  2. Extract the ZIP file.
  3. Upload the folder files_1into the root directory of your shop.
  4. Clear the Magento cache

3.2.2.2Magento 2

  1. Download the newest version of the plugin. The download is available in your sellxed.com account under "My Downloads".
  2. Extract the ZIP file.
  3. Upload the folder files_2into the root directory of your shop.
  4. Clear the Magento cache

3.3Database Migration

This section describes how you can run the database migration script

This only needs to be done if your Magento installation shows error messages regarding missing tables or columns in the database.

3.3.1Magento 1

Clear the Magento cache

If this does not resolve the issue, remove the entry payunitycw_setup from the core_resource table and clear the cache again.

3.3.2Magento 2

From the command line run the following command:

php bin/magento setup:upgrade

4Module Configuration in the Magento Shop

The configuration consists of two steps. The first step is the configuration of the main module with all the basic settings (cf. Configuration of the Main Module). During the second step you can then carry out individual configurations for each payment method . This allows for full flexibility and perfect adaptation to your processes.

Create backups!

Please create a backup of the main directory of your shop. In case of problems you will then always be able to return your shop to its original state.

We furthermore recommend testing the integration on a test system. Complications may arise with third party modules installed by you. In case of questions, our support is gladly at your disposal.

4.1Configuration of the Main Module

4.1.1Magento 1

The settings for the main module can be found under System > Configuration > PayUnity. Enter the various options, some of which you have already specified in the configuration with PayUnity. Information on the functionalities as well as the impact of the individual settings can be found directly by the option.

The field "Time-Out for pending Payments" defines after how many minutes the order status should switch from pending to cancelled (0 means that nothing should be changed) if no successful feedback concerning the payment is received from PayUnity. This might occur e.g. if the customer has closed his or her browser. Further information on this topic can be found under Order Status.

4.1.2Magento 2

You will find the settings of the main module via Stores > Configuration > Sales > PayUnity > General.

Fill in the fields according to the configuration of PayUnity or with the data which you received directly from PayUnity. You can find more exact explanations regarding each option in the help text by the input boxes.

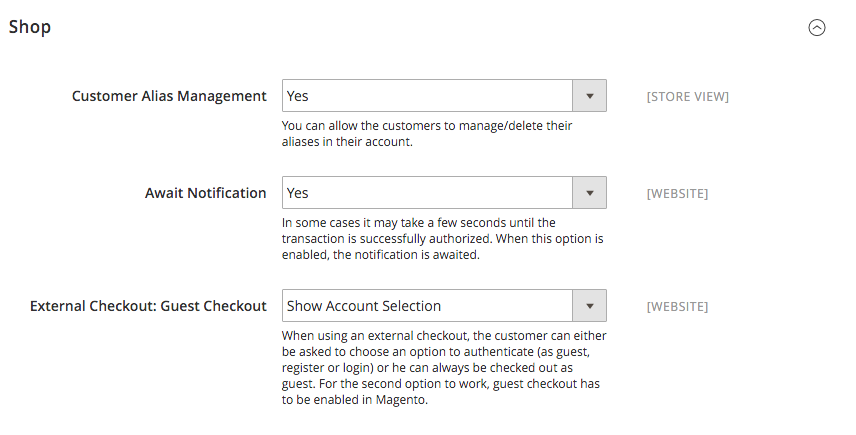

Figure 4.1: Magento 2: Configuration of the basic module. Please note, that this is an example and the settings can differ.

4.2Configuration of the Payment Method

4.2.1Magento 1

After having successfully installed the main module, you will find the individual payment modules under System > Configuration > Payment Methods. You can save individual settings for each payment method and thereby optimally adapt the payment methods to your existing processes. The most central options are described in more detail further below.

4.2.1.1Direct Capturing of Invoices

The "Invoice Creation" specifies if invoices should be captured directly or not. Captured invoices can no longer be modified. If you wish to be able to modify the ordered article for debiting, please set this option to "Deferred".

4.2.2Magento 2

After having successfully configured the main module, you will find the settings for each payment method in your shop via Stores > Sales > Payment Methods. For each payment method you can change the settings individually to optimize the payment processing in your shop.

4.2.2.1Accounting

For each payment method you need to choose whether you want to register directly or delayed. A delayed booking only reserves the amount. Therefore it is important that you follow the instructions for such transactions as listed below. Reservations are usually only valid for a few days so we recommend to register directly. The delayed booking isn't available for every payment method.

4.2.2.2Authorization Method

For some payment methods you can choose between different authorization methods. The authorization method determines how the payment form is presented in your shop. Please note that for some authorization methods with credit cards there are extended PCI requirements. (https://www.sellxed.com/en/blog/pci-300-changes).

4.3Direct Capturing of Transactions

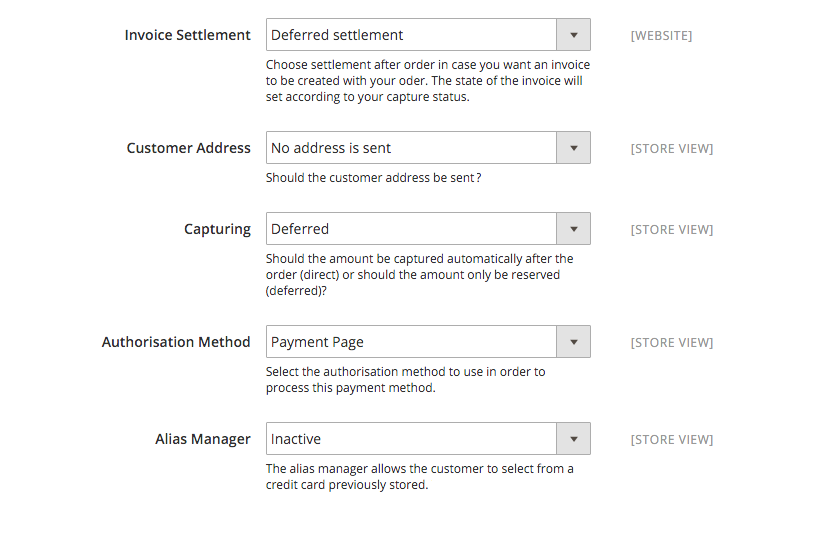

The option "Capture" allows you to specify if you wish to debit payments directly or if you first wish to authorise them and then debit the payment at a later point.

Depending on your acquiring contract, a reservation is only guaranteed for a specific period of time. Should you fail to debit the payment within that period, the authorisation may therefore no longer be guaranteed. Further information on this process can be found below.

Different settings between PayUnity and the module

It may be that settings saved in the payment modules overwrite settings saved in PayUnity.

4.4Uncertain Status

You can specifically label orders for which the money is not guaranteed to be received. This allows you to manually control the order before shipment.

4.4.1Setting the order state

For each payment method you may select in which state the order should be set to depending on the booking state. This is the initial state of the order.

4.5Optional: Validation

Note: It can be that this option is not visible in your module. In this case just ignore this section.

With the option 'Validation' you can define the moment when the payment method should be made visible to the customer during the checkout process. This setting is relevant for modules where the usage depends on the customer's compliance with specific preconditions. For example, if a solvency check has to be carried out or if the payment method is only available in certain countries. You have the choice between these options:

  • Validation before the selection of the payment method: A validation verification is carried out before the customer selects the payment method. If the customer does not fulfill the requirements, the payment method is not displayed
  • Validation after selection of the payment method: The verification of the compliance occurs after the selection of the payment method and before the confirmation of the order
  • During the authorisation: The validation verification is carried out by PayUnity during the authorisation process. The payment method is displayed in any case

4.5.1Usage of the Integrated Multishop Functionality of Magento

The payment module supports the multishop feature of Magento. No further modifications are necessary. The module automatically recognises the shop the order belongs to. In order for the multishop functionality to work, it is, however, necessary that the individual sub-shops within Magento have been configured correctly.

5Settings / Configuration of Payment Methods

5.1General Information About the Payment Methods

The plugin contains the most common payment methods. In case a desired payment method is not included per default, please contact us directly.

In order to be able to use a payment method, it must be activated in your account with PayUnity as well as in your shop. Information about the configuration of the payment methods can be found further above.

Below you can find important information for specific payment methods that deviate from the standard process.

5.2Information on Payment Status

For each payment method you can define an initial payment status (status for authorized payments etc.). You hereby define the payment status for each state depending on the processing type of the order (captured, authorized, etc.). It's the initial status which the order assumes. Depending on the mutation carried out by you, the status can change.

Important info regarding Order Status

Never set the status to Pending PayUnity or any similar pending status which is implemented by the module.

5.2.1Order status "pending" / imminent payment (or similar)

Orders with the status 'pending PayUnity' are pending orders. Orders are set to that status if a customer is redirected in order to pay but hasn't returned successfully or the feedback hasn't reached your shop yet (Customer closed window on the payment page and didn't complete payment). Depending on the payment method these orders will automatically be transformed into cancelled orders and the inventory will be cleared (so long as the Cronjob is activated). How long this takes depends on the characteristics of the payment method and cannot be configured.

If you have a lot of pending orders it usually means that the notifications from your webserver to PayUnity are being blocked. In this case check the settings of your firewall and ask the Hoster to activate the IPs and User Agents of PayUnity.

5.2.2Order status "cancelled"

Orders with the status "cancelled" have either been set to that status automatically due to a timeout, as described above, or have been cancelled directly by the customer.

5.3Klarna

You can process Klarna directly viaPayUnity.In the following we will expand on the characteristics of the Klarna setup.

5.3.1Supported / Unsupported Functions

The module does not support the following functions:

  • You can not create or change any orders in the backend of Magento .
  • Partial activation and refunds can only be performed through the backend of PayUnity (https://payunity.com/bip/login.prc) Full activation and full refunds can be performed directly inside Magento. For more information visit the Chapter around transaction management.
Edit Klarna transaction within Magento

Please make sure that you never modify or edit any Klarna transaction in your Magento backend.

The remaining functions are supported by the module. In the following you will find a description of the most important functions.

5.3.2Set Up / Configuration of the Payment Method

Activate the payment method as usual. Please note the following regarding the installation:

5.3.2.1Displayed Name of the Payment Method

You may change the displayed name in the frontend via title. Please use the title Invoice. Furthermore, you can define whether the Klarna logo is visible to your customers in the frontend via Display Logo.

5.3.2.2Description of the Payment Method

You may change the description of the payment method in the frontend via description. Please make sure you display the following description in your frontend: "Pay within 14 days".

5.3.2.3Select Authorization Method

We recommend to set Server as authorization method. In this case you will not be redirected to the payment page of PayUnity.

5.3.2.4Klarna Merchant ID

In the payment method you can also define the Klarna Merchant ID (EID). You will either find this in your Klarna account or ask for it directly at PayUnity.

5.3.3Canceling the Invoice

How to cancel invoices will be explained below in the chapter Activating / Canceling Orders. For further questions please refer to this section.

5.3.4Full Activating Invoices

For more information visit the Chapter around transaction management.

5.3.5Partial Refund and Partial Activation

Partial refunds and partial activations can only be done through the BIP of PayUnity.

5.3.6On Hold Orders (Pending)

Pending orders are not supported by the module. In order you want those to be handled correctly by the system, please leave the field "Status Check interval" blank in your BIP. Please contact PayUnity to make this setting.

5.3.7Testing

In order for you to test the payment method Klarna you will need specific test data. But first make sure the the operation mode is on test and the test mode is on external.

You will find the official test data for Klarna directly in the developer portal via this link: https://developers.klarna.com/en/de+php/kpm/test-credentials.

5.3.8Payment fees

If you want to charge payment fees for a specific payment method, feel free to use the compatible payment fees modules. Those fees are directly transmitted to Klarna.

Payment Fees

Please make sure to not charge payment fees within the PayUnity BIP Backend. Please use exclusively the compatible modules as described above.

6The Module in Action

Below you will find an overview of the most important features in the daily usage of the PayUnity module.

6.1Capturing / Cancelling of Orders

6.1.1Magento 1

Please note:

The transaction management between your shop and PayUnity is not synchronised. If you capture payments with PayUnity, the status in the shop will not be updated and a second capturing in the shop is not possible.

6.1.1.1Case 1: Invoice Capturing Directly After the Order

In the following, the process is explained for the case that you have chosen to directly create the invoice after having placed the order and only authorise payments - not capture them directly - (further information on the configuration can be found under Creating the Invoice).

In order to capture the order, open the invoice and click "capture". If you click "Cancel", the authorisation will be cancelled.

6.1.1.2Case 2: Deferred Invoice Capturing

In case you have chosen the deferred invoice creation, you first have to create the invoice by clicking on the button "Invoice". Select "Capture online" below the total amount and then click on "capture invoice". The invoice has now been captured.

6.1.1.3Cancel of orders/transactions

In order to cancel a transaction you first have to open the invoice and click on the cancel button. Aftert that open the order and click on cancel here again. This will send the cancel of the order to PayUnity. Please note that you need to cancel the invoice and the order.

6.1.2Magento 2

6.1.2.1Capture Bug in Magento (v. 2.0.0)

In version 2.0.0 of Magento there is a bug. It could be that invoices cannot be captured. Please make the following adjustments in the file /vendor/magento/module-sales/Controller/Adminhtml/Order/Invoice/Capture.php:

  1. Delete the lines in the picture bellow which begin with a - .
  2. Add the lines which has been marked with a + .

Here you can find the codes to be inserted in the form of a text:

+ )->addComment( __('The credit memo has been created automatically.') );

Figure 6.1: Opening the Invoice

6.1.2.2Performing Captures

Please note

The transaction management between PayUnity and your shop isn't synchronized. When you capture the payments at PayUnity , the status is not adjusted and a second capture isn't possible in your shop.

In the configuration of the payment method you can decide whether the invoice should be captured after having been created or if only the payment is authorized. You also decide if you already want to create an invoice. If you create an invoice you can't make any adjustments for the capture.

In order to capture invoices please take the following steps:

  1. Open the order and create an invoice.
  2. If you have set the Invoice Settlement to deferred you can still make adjustments to the invoice.
  3. Click on Capture Online.
Figure 6.1: Capture options

6.1.2.3Cancelling / Voiding Orders

In order to issue a cancellation of the payment you must use the "Void" button. If you wish to use the "Cancel" button you must cancel the payment in the PayUnity backend portal.

6.2Place Orders in the backend of Magento

6.2.1Magneto 1

With the Magento payment module you can place orders and capture the payment directly in the shop; so called Mail Order / Telephone Order (MOTO).

  1. Go to the order overview and click on "Create New Order"
  2. The usual window for the creation of orders will be opened. Select the customer in question, the item and the address
  3. Select the preferred payment method and click on "Submit Order".
  4. Depending on the authorisation method that you have saved for the selected payment method, you will either be redirected to the Payment Page of PayUnity or the mask for the credit card will appear such as in the image below. Enter the credit card data of the customer.
Figure 6.1: MoTo Transactions in Magento

6.2.2Magento 2

With the Magento payment module you can trigger orders directly from your shop, so called Mail Order / Telephone Order (MOTO).

  1. Go to the overview of the order (Sales > Orders) and click on "Create New Order"at the top right.
  2. The familiar window to create an order will open. Choose the desired customer, article and address.
  3. In the payment method box, choose the desired payment method and click on "Finalize order".
  4. After that you will be redirected either to the Payment Page of PayUnity or you will be asked to enter your payment information in the shop, depending on your settings.

If an alias of the customer exists, you can alternatively use that for the order.

6.3Refunds

6.3.1Magento 1

You can refund already captured transactions and automatically transmit them to PayUnity. In order to do so, open the invoice of the captured order. By clicking on "Credit Memo" the window for refunds is opened. Enter the amount you wish to refund. By clicking on "Refund" the refund is transmitted to PayUnity.

Below you find a step-by-step guide including screenshots:

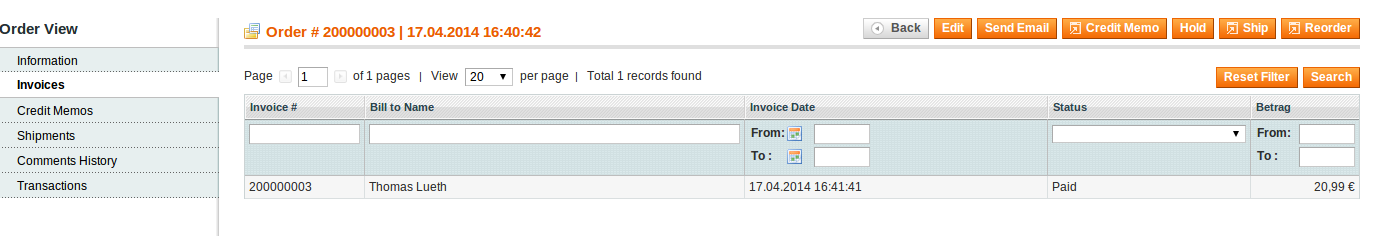

Figure 6.1: 1. open the invoice
Figure 6.1: 2. click on credit memo - Important - open the invoice first!.
Figure 6.1: 3. Adjust the refunding amount (see more info below Refunds Based on Quantity)
Figure 6.1: 4. To process the refund click on Refund.
Figure 6.1: Wait for the confirmation of the refund.

6.3.1.1Refunds Based on Quantity

You can make refunds based on product quantity. In order to do so, open the credit memo window and enter the amount of products you wish to refund to your customer's card

You can carry out as many individual refunds as you wish until you have reached the quantity of the original order. The status of the order then automatically switches to complete.

Figure 6.1: Overview of all Refunds

6.3.1.2Refunding of Any Amount

As each position of the order needs to be transmitted to PayUnity we can't support the function Adjustment Refund - meaning the refund of any amount. Only whole items can be refunded by adjusting the refund amount.

Adjusting the amount of several refunds

It is possible to carry out several refunds on an order. Please note that you can refund a maximum of 100% of the original amount. If you have already carried out a refund you need to make sure not to refund more than the initial amount by adjusting the amount and the Adjustment Fee.

6.3.2Magento 2

6.3.2.1Resolving a Current Magento Bug (v. 2.0.0)

In the 2.x version of Magento there is a bug. Please make the following adjustments to the file /vendor/magento/module-sales/Model/Order/Payment.php :

  1. Delete the lines in the picture bellow which begin with a - .
  2. Add the lines which has been marked with a + .
Figure 6.1: Adjustments so you are able to enter a credit memo.

Here you can find the codes to be inserted in the form of a text:

+ )->addComment( __('The credit memo has been created automatically.') );

6.3.2.2Performing Credits

For registered transactions you can create credits and transmit them automatically to PayUnity . In order to do so open an invoice of an already registered order. By clicking on "Credit Memo" a dialog will open for the refunds. Now you can adjust the number of products which you would like to credit in the credit memo dialogue.

Here you can find each step again including screenshots:

Figure 6.1: 1. Opening the Invoice
Figure 6.1: 2. Click on Credit Memo - Important the invoice needs to be opened first.

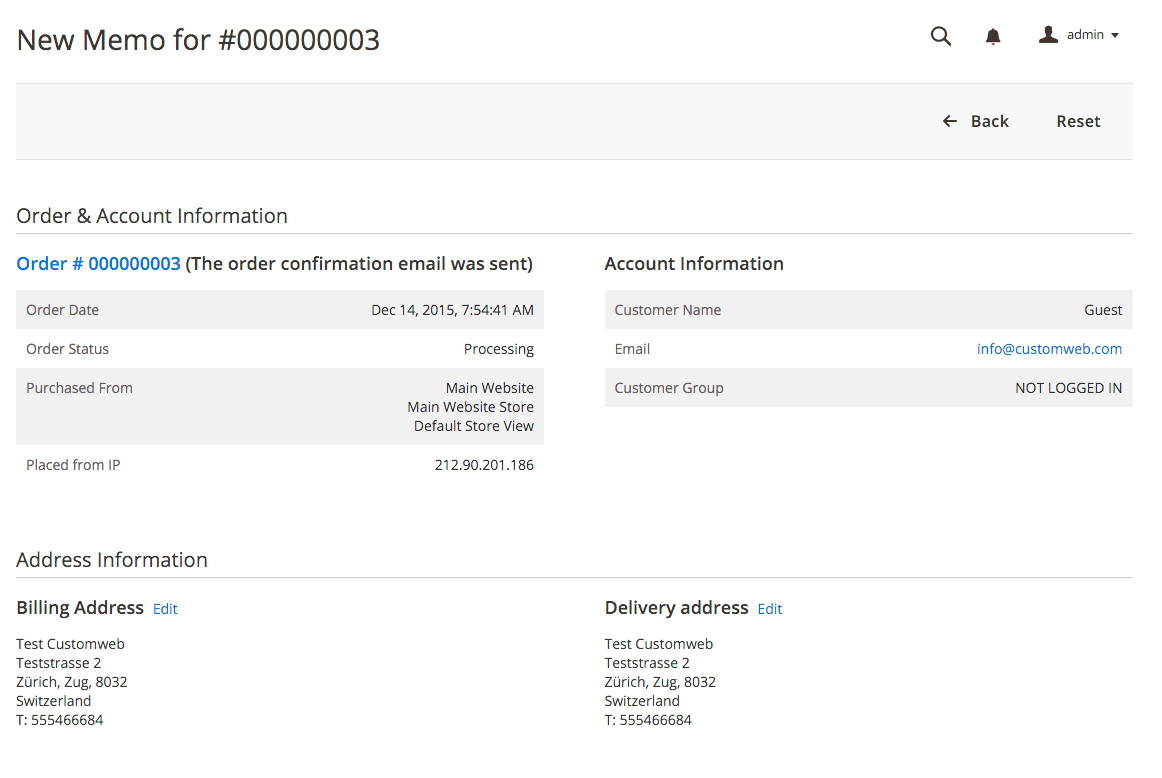

Figure 6.1: 3. Choose which products you would like to credit and click on Refund Online.

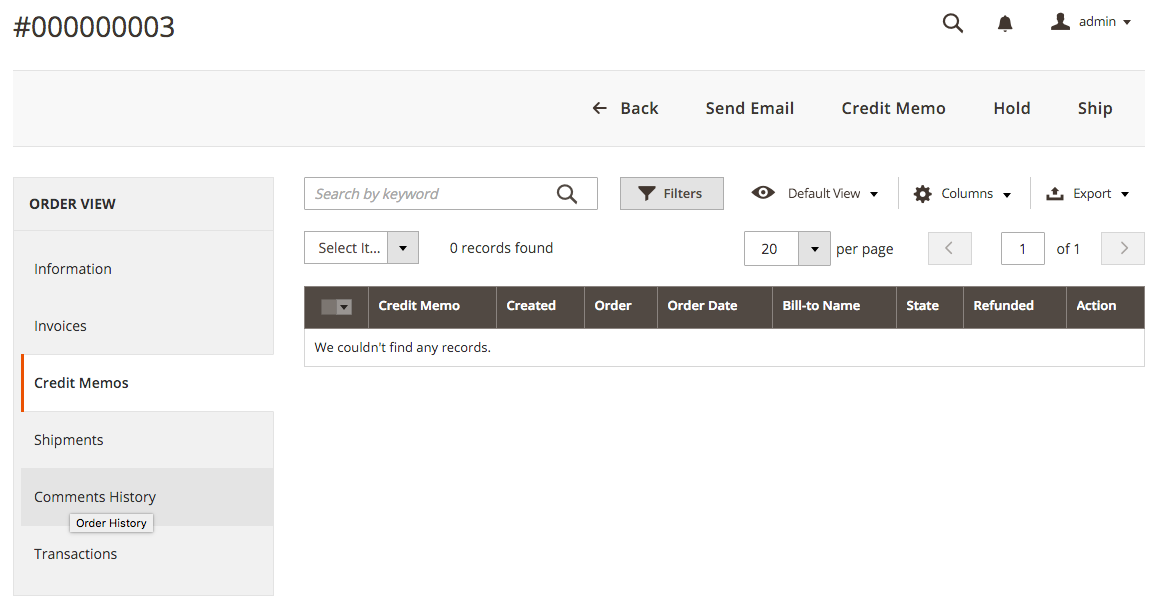

Figure 6.1: Overview of all the credits made
Adjusting the amounts for several refunds

It is possible to issue several credits on one order. Please note that you can't credit more than 100% of the original amount. If you have already issued a credit you will need to make sure you don't credit more than the original amount, by adjusting the amount and the Adjustment Fee.

6.4Useful Transaction Information on the Order

6.4.1Magento 1

In each order, processed via our module, you can find an overview of the most important information about the transaction as well as a transaction history.

Figure 6.1: Transaction Information.

6.4.2Magento 2

In each order, which was processed by our module, you will find an overview of the most important information on the transaction and transaction history.

Figure 6.1: Transaction Information.

6.5Usage Abo Commerce / Recurring Payments

6.5.1Magento 1

Abo-Commerce increases long-term customer loyalty. Customers can choose as many products as they wish and have them ordered in cycles of their choice. The advantage for customers: products that are required regularly are automatically delivered to their home.

If you wish to offer recurring payments with Magento, you can use our extension that we've developed for you. The module can be purchased directly in our shop. Please refer to the attached manual for the configuration of the module.

6.5.2Magento 2

It is not possible to create recurring payments for Magento 2

6.6Usage of the Alias Managers / Token Solution

6.6.1Magento 1

With the Alias Manager, your customers can securely save their credit cards with PayUnity for later purchases. You can enable this by activating the option "Alias Manager" in the configuration of the Payment Method. The customer can then choose from their saved credit cards without having to enter all the details again.

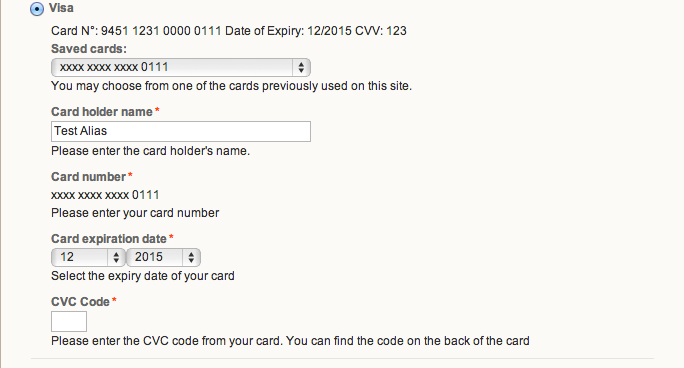

Figure 6.1: Alias Manager Transaction
Attention

To use the Alias Manager tit may be necessary to activate certain options in your PayUnity account. Please contact PayUnity directly to do so.

6.6.1.1Deleting Customer Aliases

You can easily delete a customer's alias by opening the customer in the backend of Magento. Switch to the tab PayUnity Alias and delete the saved alias directly here.

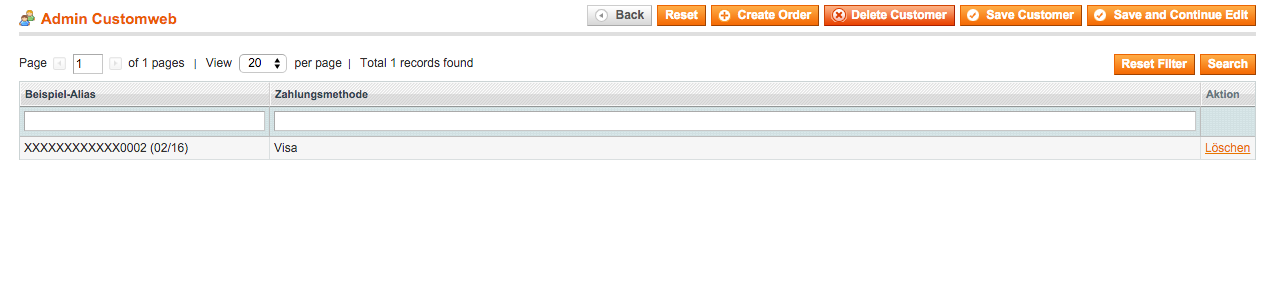

Figure 6.1: Delete previously saved aliases of your customers.

6.6.2Magento 2

Due to the integration of the Alias Manager the customers credit card data can be saved for later purchases. The customer can choose between the cards that have already been saved and won't have to enter all of credit card data again.

6.6.2.1Activating the Alias Manager / Token

In order for you to be able to use this you will need activate the option "Alias Manager" in the payment methods.

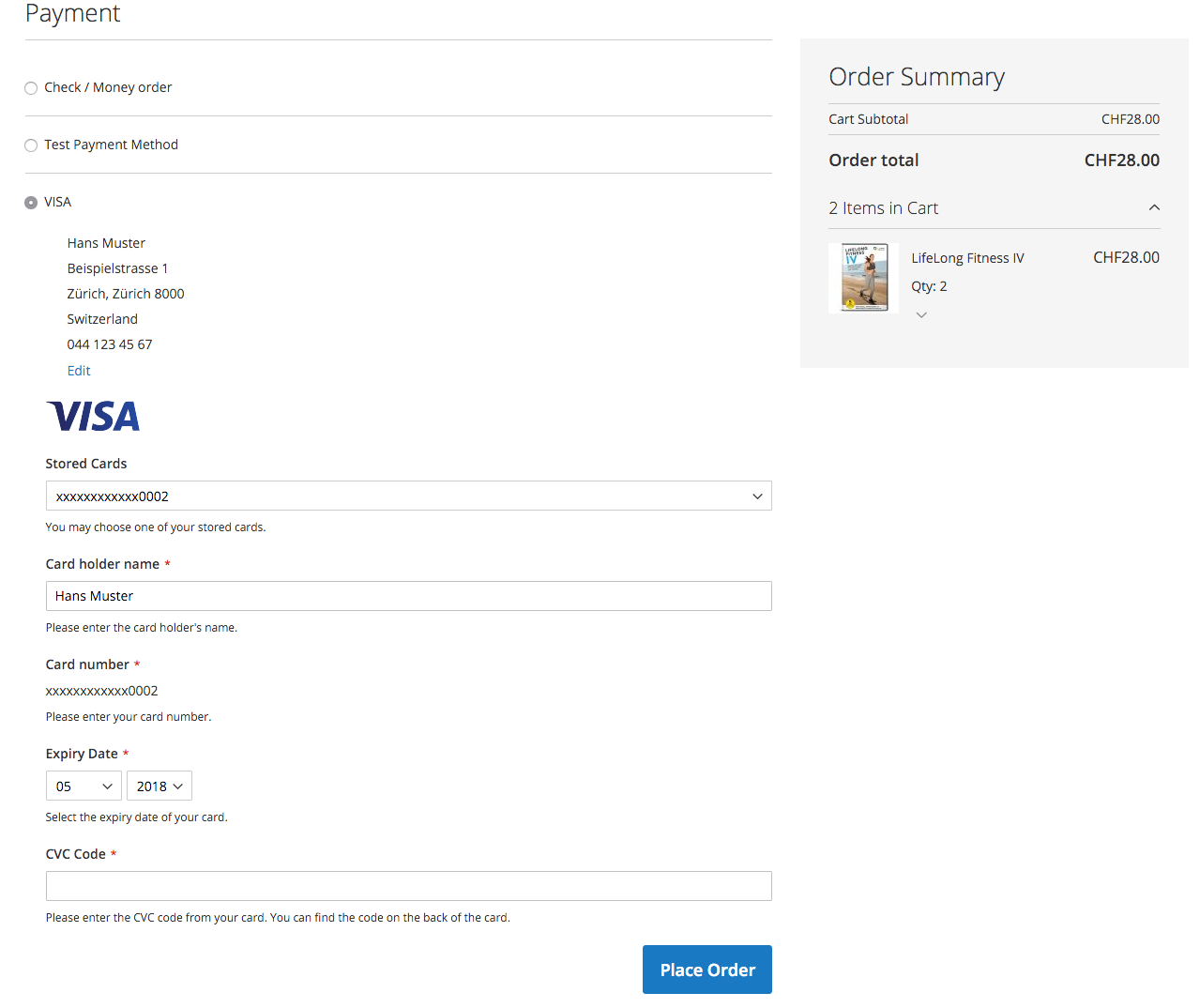

Figure 6.1: Alias Manager Transaction

6.6.2.2Customers Deleting the Token

In Magento 2 you can allow your customers to manage the aliases in their customer account at "My PayUnity Aliases / Token"". This feature can also be enabled in the settings of the payment method

Figure 6.1: Activating the Alias Manager for Customers.

6.7Tax Calculation Settings

6.7.1Magento 1

To ensure that the taxes are calculated correctly and transmitted correctly to a third party invoice provider inside Magento please make sure that you set the calculation settings in the menu under System > Configuration > Tax as showed in the screenshot below.

Figure 6.1: Recommended tax calculation settings for Magento.

Please also make sure that inside the settings of your promotion in the tab "Actions" the discount is not applied to the shipping amount as Magento is not correctly transmitting the tax rate there.

6.8OneStepCheckout

6.8.1Magento 1

The checkout of Magento can be modified and reduced to one step. The so called OnePageCheckout. Our modules support the most important OnePageCheckout extensions. If you are thinking of using a OneStepCheckout extension in combination with our PayUnity Magento, please make sure that you are using one of the following:

6.8.2Magento 2

There is no official support for any OnePageCheckout module for Magento 2.

6.9Setup a Cron Job to Activate the Timed Operations

6.9.1Magento 1

To activate the timed operations of the plugin (e.g. update service, deleting pending orders, etc.) make sure that you set up the Magento Cron engine. Especially the update function allows you to automatically retrieve additional information or changes of your order directly via the API of PayUnity. Please note it could be that in order to use the update feature it may be necessary that PayUnity activates additional options in your account.

The module uses the standard cron engine of Magento. More information regarding the set up can be found here.

Here we suggest you use a Cron Engine like for example EasyCron. This allows you to open the file (URL) with an external service.

6.9.2Magento 2

The module uses the standard cron engine of Magento 2. More information regarding the set up can be found here.

6.10Magento 1 API Manual

Via API, our module provides plenty of information on a transaction. The following section describes which calls are possible and what information is provided.

6.10.1General Information on Using the API

General information on using the Magento SOAP API can be found here: http://www.magentocommerce.com/api/soap/introduction.html

6.10.2API Calls

This overview shows the API Versions and which API Calls they support.

6.10.2.1API V1

  • $client->call($session, 'payunitycw_transaction.list'); //List of all transactions
  • $client->call($session, ‘payunitycw_transaction.info', {transactionsId}); // Single Transaction

6.10.2.2API V2

  • $client->payunitycwTransactionList($session); //List of all transactions
  • $client->payunitycwTransactionInfo($session, {transactionsId}); //Single Transaction

6.10.2.3XML-RPC

  • $client->call('call', array($session, 'payunitycw_transaction.list')); //List of all transactions
  • $client->call('call', array($session, 'payunitycw_transaction.info', {transactionsId})); //Single Transaction

6.10.2.4REST

  • $this->callApi(‘payunitycw/transactions'); //List of all transactions
  • $this->callApi('payunitycw/transactions/{transactionsId}'); //Single Transaction

7Testing

Before switching from test to live mode it is important that you test the module extensively.

Testing

Do not forget to switch the operating mode from test to live after having successfully tested the module.

7.1Test Data

In the following section you can find the test data for the various payment methods:
American Express
Card number
377777777777770
Expiry Date
12/2020
CVC
123
No 3D Secure
Card number
375987000000005
Expiry Date
12/2020
CVC
123
3D Secure
Carte Bleue
Card number
5555555555554444
Expiry Date
12/2020
CVC
123
Dankort
Card number
5019717010103742
Expiry Date
12/2020
CVC
123
Diners Club
Card number
36961903000009
Expiry Date
12/2020
CVC
123
Sepa Direct Debits
IBAN
AT152011128161647502
BIC
GIBAATWWXXX
Austria (AT)
IBAN
DE23100000001234567890
BIC
MARKDEF1100
Germany (DE)
IBAN
ES9121000418450200051332
BIC
CAIXESBBXXX
Spain (ES)
Discover Card
Card number
6011587918359498
Expiry Date
12/2020
CVC
123
giropay
IBAN
AT152011128161647502
BIC
GIBAATWWXXX
Austria (AT)
IBAN
DE23100000001234567890
BIC
MARKDEF1100
Germany (DE)
IBAN
ES9121000418450200051332
BIC
CAIXESBBXXX
Spain (ES)
JCB
Card number
3541599999092431
Expiry Date
12/2020
CVC
123
Klarna Invoice
Klarna (Approved)
Klarna (Denied)
Klarna (Pending -> Approved)
Klarna (Pending -> Denied)
Maestro
Card number
6799851000000032
Expiry Date
12/2021
CVC
123
MasterCard
Card number
5454545454545454
Expiry Date
12/2021
CVC
123
No 3D Secure
Card number
5212345678901234
Expiry Date
12/2021
CVC
123
3D Secure
Visa
Card number
4200000000000000
Expiry Date
12/2020
CVC
123
No 3D Secure
Card number
4012001037461114
Expiry Date
12/2020
CVC
123
3D Secure
Card number
4000000000000010
Expiry Date
12/2021
CVC
123
3D Secure 2.0
V PAY
Card number
4822000000000000003
Expiry Date
12/2020
CVC
123

8Errors and their Solutions

You can find detailed information under http://www.sellxed.com/en/faq. Should you not be able to solve your problem with the provided information, please contact us directly under: http://www.sellxed.com/en/support

8.1Module is not shown

If the module is not shown even though the files have been downloaded onto the server correctly, please check the following:

  • The local.xml can be found in the /app/etc directory
  • Make sure disable_local_modules is set to ‚false‘

8.2The Referrer URL appears in my Analytics Tool

When a customer and the notification are redirected via Header Redirection, the PayUnity Referrer URL might appear in your Analytics Tool thus hiding the original traffic source. However, most Analytic Tools are able to minimize this problem.

In case you are using Google Analytics as reporting tool, this step by step guide may help you to exclude the URLs: under bullet point 4.

9Compatibility with Third-Party Plugins

The plugins listed below are compatible with our payment modules and allow you to handle certain tasks in a easier way.

9.1Magento 1

9.1.1Fees and discounts within Magento

To configure a PayUnity payment gateway based fee and discount, you will need the following 3rd-Party plugin.

9.2Birthday and gender in Magento 1

For certain payment service providers it is necessary to check the birthday an the gender of a customer. Magento 1 does not check this by default. this check can be enabled under "Go to System > Configuration | Customers > Customer Configuration > Name and Address Options".

9.3Birthday and gender in Magento 2

For certain payment service providers it is necessary to check the birthday an the gender of a customer. Magento 2 does not check this by default. this check can be enabled under "Stores > Configuration | Customers > Customer Configuration > Name and Address Options".

10Error Logging

The module will log different unexpected errors or information depending on the configured level. If there is any issue with the module, this log can help identify the cause.

10.1Log Levels

You can configure the log level in the PayUnity settings. The store log setting does not affect these log messages.

  • Error: Logs unexpected errors only. (Default)
  • Info: Logs extended information.
  • Debug: Logs information helpful for debugging.

10.2Log Location

The log file is stored in the Magento log directory. (Default Path: {shopRootDirectory}/var/log)

11Advanced Information

This section of the manual is for advanced usage of the module. The content is for advanced users with special requirements. Everything in this section is optional and not required for the daily usage of the module.

11.1Transaction Object

This section describes how to extract information from a transaction, if you need it for further processing. E.g. you require more information of the transaction for further processing an order in your ERP system.

The code snippets in this section assume your script resides in the root folder of the shop with the default shop folder structure.

11.1.1Magento 1

Initialize the shops core functions.
define('MAGENTO_ROOT', getcwd());
$mageFilename = MAGENTO_ROOT . '/app/Mage.php';
require_once $mageFilename;
Mage::setIsDeveloperMode(true);
ini_set('display_errors', 1);
umask(0);
Mage::app();
Now you can load the transaction and then extract the transactionObject.
Load the transaction object by Id:
$dbtransaction = Mage::getModel('payunitycw/transaction')->load($transactionId);
$transactionObject = $dbtransaction->getTransactionObject();
Load the transaction object by Order Number:
$dbtransaction = Mage::getModel('payunitycw/transaction')->load($orderId,'transaction_external_id');
$transactionObject = $dbtransaction->getTransactionObject();

11.1.2Magento 2

Initialize the shops core functions.
use Magento\Framework\App\Bootstrap;
require __DIR__ . '/app/bootstrap.php';
$bootstrap = Bootstrap::create(BP, $_SERVER);
$obj = $bootstrap->getObjectManager();
$state = $obj->get('Magento\Framework\App\State');
$state->setAreaCode('frontend');
Get the transaction factory.
$factory = $obj->get('Customweb\PayUnityCw\Model\Authorization\TransactionFactory')->create();
Now you can load the transaction and then extract the transactionObject.
Load the transaction object by Id:
$dbTransaction = $factory->load($transactionId, 'entity_id');
$transactionObject = $dbTransaction->getTransactionObject();
Load the transaction object by Order Number:
$dbTransaction = $factory->load($orderId, 'order_id');
$transactionObject = $dbTransaction->getTransactionObject();
Load the transaction object by Payment Id:
$dbTransaction = $factory->load($paymentId, 'payment_id');
$transactionObject = $dbTransaction->getTransactionObject();
